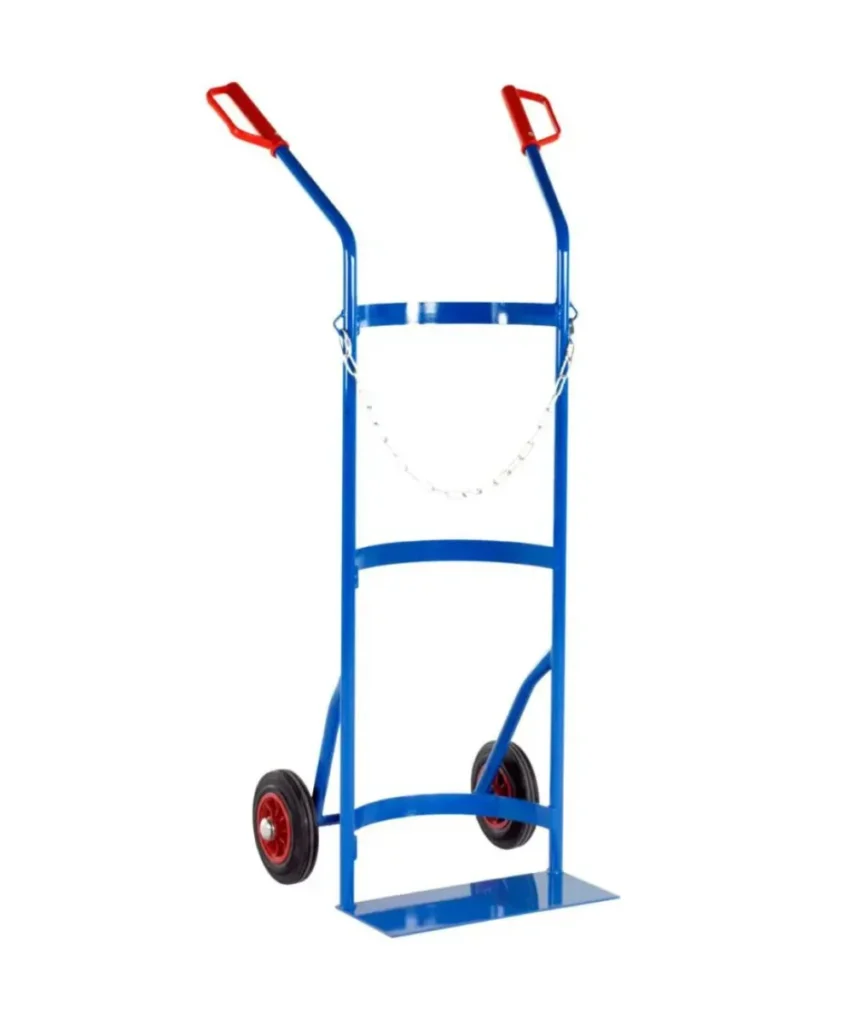

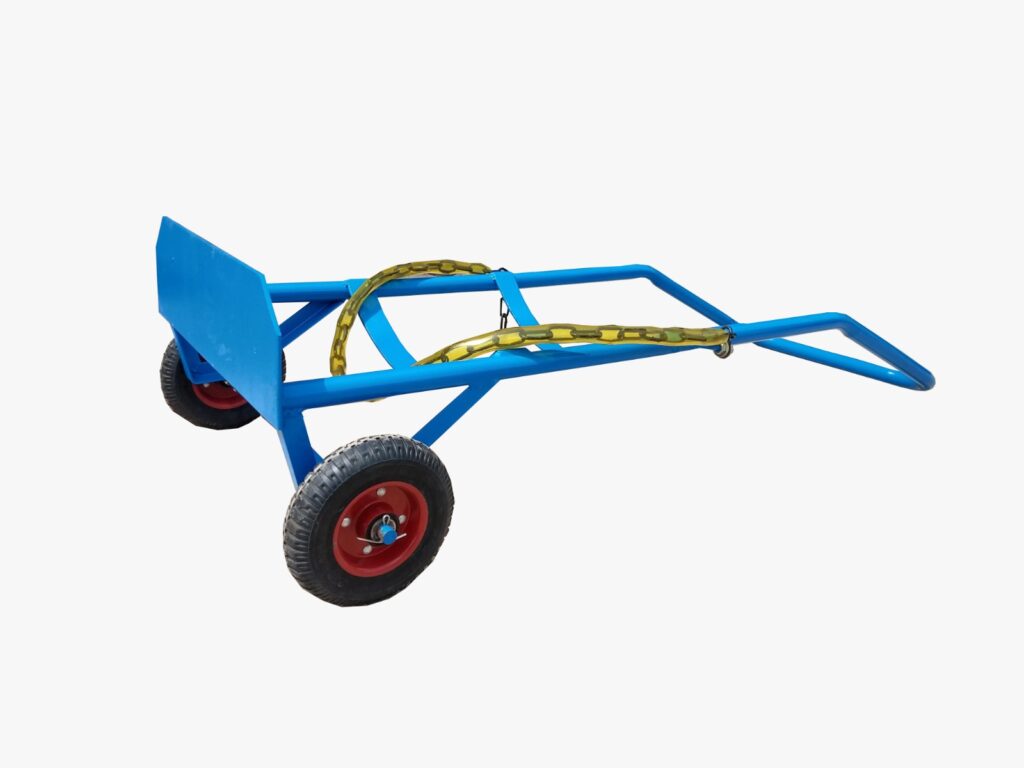

Cylinder Trolley

MAGNUS is a safety-focused cylinder trolley manufacturer in Pakistan, building sturdy trolleys for safe transportation and handling of gas cylinders across industrial and commercial facilities. Available in three standard models for 230 mm and 380 mm diameter cylinders. Built with solid rubber wheels, plus rear castors on selected models.

Cylinder Trolley Manufacturer in Pakistan

Moving gas cylinders can be risky and labour-intensive without the right equipment. Our Cylinder Trolleys are designed to make this task simple, safe, and efficient.

Cylinder Trolley Models

Model	Cylinder Dia	Overall Size	Wheels
MCT01	380 mm	W430 x H1140 mm	Solid Rubber (2 Nos.)
MCT02	230 mm	W430 x H1140 mm	Solid Rubber (2 Nos.) & Rear Castor (1 No.)
MCT03	380 mm	Overall Upright: W700 x H1400 mm x D800 mm Overall Support: W700 x H1010 mm x D1320 mm	Solid Rubber (2Nos.) & Rear Castors (2Nos.)

Questions People Ask Us Before They Buy

What is a cylinder trolley used for?

A cylinder trolley is used to move gas cylinders safely. Moving cylinders by hand can be risky and labour-intensive, and a trolley makes the task simpler, safer, and more efficient.

What cylinder sizes do your trolleys fit?

The MCT01 and MCT03 are for 380 mm diameter cylinders, and the MCT02 is for 230 mm diameter cylinders.

What’s the difference between the three cylinder trolley models?

The MCT01 and MCT02 share the same overall size (W430 x H1140 mm) but suit different cylinder diameters. The MCT02 also adds a rear cassette to its two solid rubber wheels. The MCT03 is a larger model for 380 mm cylinders, with two solid rubber wheels and two rear castors.

What kind of wheels do the cylinder trolleys have?

All three models have two solid rubber wheels. The MCT02 adds one rear castor, and the MCT03 adds two rear castors.

What are the dimensions of the cylinder trolleys?

The MCT01 and MCT02 measure W430 x H1140 mm. The MCT03 measures W700 x H1400 mm x D800 mm upright and W700 x H1010 mm x D1320 mm in its support position.
